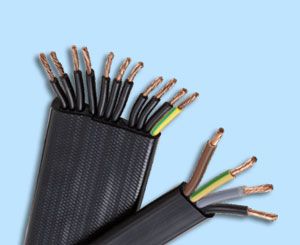

Elevator Traveling Cables
VISION offers high flexibility & abrasion registant elevator traveling cable. Our cables are manufactured using 99% pure EC grade fine Copper wires and special PVC compound to provide fault free longer service life.
Application
To supply power to the submersible pumps for…
- Irrigation
- Industries
- Offshore Drilling Rigs
- Sea Water Handling
- Drinking Water-Supply
- D-Watering Cable
- Sewage Treatments Plants
- Fire Fighting
Range
- 12 Core & 20 Core Flat Cables as per the Table
Conductor
- Annealed Plain Copper
- EC Grade
Purity
- 99.9% as per IS :8130
Insulation
- PVC - Special Grade
- FR
- FRLS
Sheath
- PVC-FR
- TPR
Standards
- IS 694
- BS 6004
- IEC 60227
- IS 8130
- IS 5831
PVC INSULATED & SHEATHED 3 CORE FLAT CABLE AS PER IS:694-1990
| CONDUCTOR | PVC INSULATION | PVC SHEATH | Current Rating at 200 C Amps | Approx Weight Kg./Km | ||||
|---|---|---|---|---|---|---|---|---|
| Area in Sq. mm | Nos. & Dia. of Wire | Normal Thickness mm | Normal Core Dia. mm | Normal Thickness mm | Approx Overall Dimensions | |||
| Thickness mm | Width mm | |||||||
| 1.5 | 22/0.30 | 0.8 | 3.25 | 1.15 | 6.0 | 12.8 | 15 | 125 |
| 2.5 | 36/0.30 | 0.9 | 3.84 | 1.15 | 6.4 | 14.6 | 20 | 175 |
| 4.0 | 56/0.30 | 1.0 | 4.65 | 1.15 | 7.4 | 17.2 | 27 | 235 |
| 6.0 | 85/0.30 | 1.0 | 5.30 | 1.15 | 7.9 | 18.7 | 31 | 325 |
| 10.0 | 140/0.30 | 1.0 | 6.60 | 1.40 | 9.9 | 23.7 | 42 | 525 |
| 16.0 | 226/0.30 | 1.0 | 8.20 | 1.40 | 11.4 | 28.0 | 60 | 785 |
| 25.0 | 354/0.30 | 1.2 | 10.10 | 2.00 | 14.7 | 35.5 | 75 | 1270 |
| 35.0 | 495/0.30 | 1.2 | 11.50 | 2.00 | 16.2 | 39.5 | 90 | 1640 |
| 50.0 | 703/0.30 | 1.4 | 13.60 | 2.20 | 18.3 | 45.5 | 120 | 2080 |
| 70.0 | 440/0.45 | 1.4 | 15.30 | 2.20 | 20.0 | 51.0 | 150 | 2830 |
| 95.0 | 484/0.50 | 1.6 | 18.00 | 2.40 | 23.5 | 60.0 | 180 | 3620 |
ELEVATOR TRAVELING CABLES
| Conductor | PVC Insulation | PVC Sheath | Current Carrying Capacity(Amps) | Approx Weight Kg./Km | |||||
|---|---|---|---|---|---|---|---|---|---|
| No. of Cores | Area in Sq. mm | No. & Dia of Wires(mm) | Nominal Thickness(mm) | Core Dia Nominal(mm) | Approx Overall Dimensions | ||||
| Sheath Thickness mm | Cable Thickness mm | Width mm | |||||||
| 12 | 0.5 | 16/0.2 | 0.60 | 2.00 | 1.2 | 4.4 | 26.4 | 4 | 200 |
| 12 | 0.75 | 24/0.2 | 0.60 | 2.00 | 1.2 | 4.7 | 30.0 | 7 | 258 |
| 12 | 1.00 | 32/0.2 | 0.60 | 2.50 | 1.2 | 4.9 | 32.80 | 12 | 309 |
| 12 | 1.50 | 48/0.2 | 0.60 | 2.70 | 1.2 | 5.1 | 35.20 | 16 | 475 |
MULTICORE FLAT ELEVATOR CABLES
| CONDUCTOR | PVC INSULATION | PVC SHEATH | Current Carrying Capacity (Amps) | Approx Weight Kg./Km | |||||
|---|---|---|---|---|---|---|---|---|---|
| No. of Cores | Area in Sq. mm | No & Dia of Wires (mm) | Nominal Thickness (mm) | Core Dia Nominal (mm) | Approx Overall Dimensions | ||||
| Sheath Thickness mm | Cable Thickness mm | Width mm | |||||||
| 12 | 0.5 | 16/0.2 | 0.60 | 2.00 | 1.2 | 4.4 | 26.4 | 4 | 200 |
| 12 | 0.75 | 24/0.2 | 0.60 | 2.30 | 1.2 | 4.7 | 30.0 | 7 | 258 |
| 12 | 1.00 | 32/0.2 | 0.60 | 2.50 | 1.2 | 4.9 | 32.80 | 12 | 309 |
| 12 | 1.50 | 48/0.2 | 0.60 | 2.70 | 1.2 | 5.1 | 35.20 | 16 | 475 |
Note : The Conductor Size shall be According to the Resistance Value & it's Tolerance specified in IS:8130-1984
